IPK05

IPK05

 Physical Property of Door Station C112A
  System  Linux
  RAM  128MB
  ROM  128MB
  Front Panel  Plastic
  Power Supply  PoE (802.3af) or DC 12V/2A
  Wi-Fi  IEEE802.11 b/g/n,@2.4GHz
  Camera  2MP, CMOS, Digital WDR
  Indicator Light  3
  Video Resolution  1920 x 1080
  Viewing Angle  110°(H) / 60°(V) / 125°(D)
  Door Entry  IC (13.56MHz) Card, APP
  IP Rating  IP65
  Installation  Surface Mounting
  Dimension  130 x 50 x 28 mm
  Working Temperature  -40℃ – +55℃
  Storage Temperature  -40℃ – +70℃
  Working Humidity  10%-90% (non-condensing)
   Physical Property of Indoor Monitor E217W
  System  Linux
  RAM  128MB
  ROM  128MB
  Front Panel  Plastic
  Display  7-inch TFT LCD
  Screen  Capacitive touch screen
  Resolution  1024 x 600
  Power Supply  PoE (802.3af) or DC 12V/2A
  Wi-Fi  IEEE802.11 b/g/n,@2.4GHz
  Installation  Surface Mounting
  Dimension  195 x 130 x 14.5 mm
  Working Temperature  -10℃ – +55℃
  Storage Temperature  -40℃ – +70℃
  Working Humidity  10%-90% (non-condensing)
 Audio & Video
  Audio Codec  G.711
  Video Codec  H.264, H.265
  Light Compensation  LED white light
 Networking
  Protocol  Onvif, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
 Port of C112A
  Wiegand  Support
  Ethernet  1 x RJ45, 10/100 Mbps adaptive
  RS485  1
  Relay Out  1
  Reset Button  1
  Input  2
  TF Card Slot  1
  Port of E217W
  Ethernet  1 x RJ45, 10/100 Mbps adaptive
  RS485  1
  Doorbell Input  8 (Use any alarm input port)
  Alarm Input  8
  Power Output  1 (12V/100mA)
  TF Card Slot  1

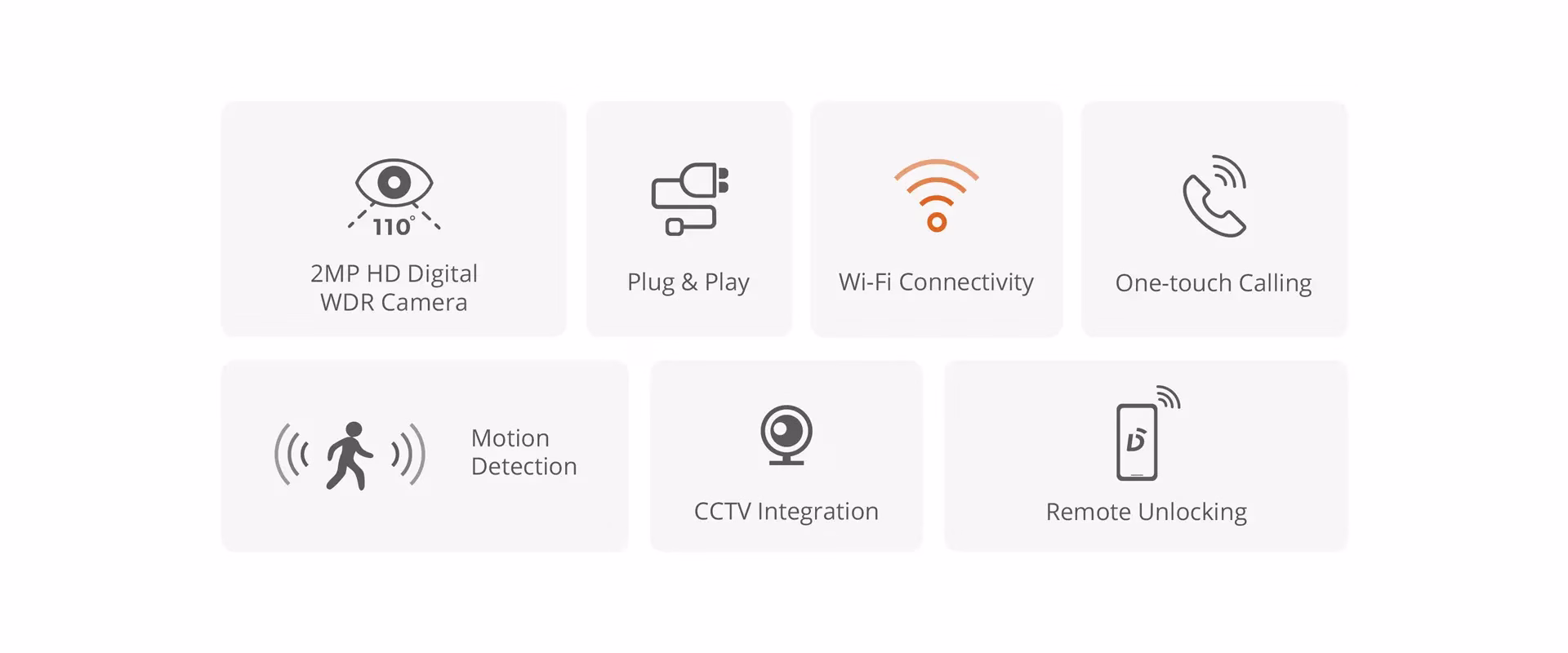

Description

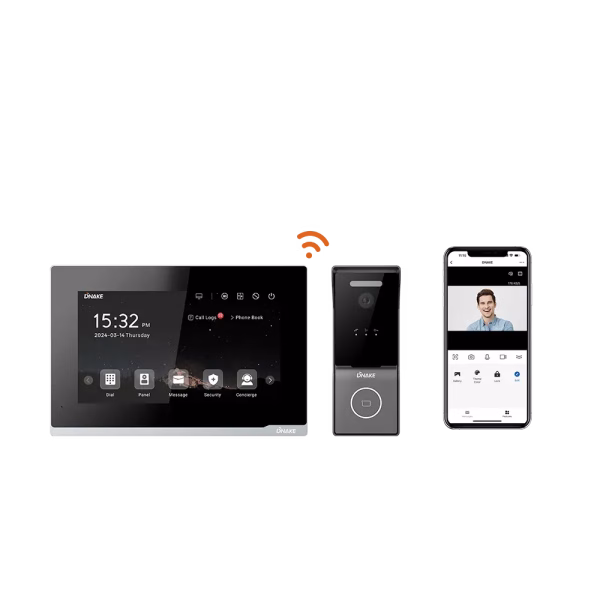

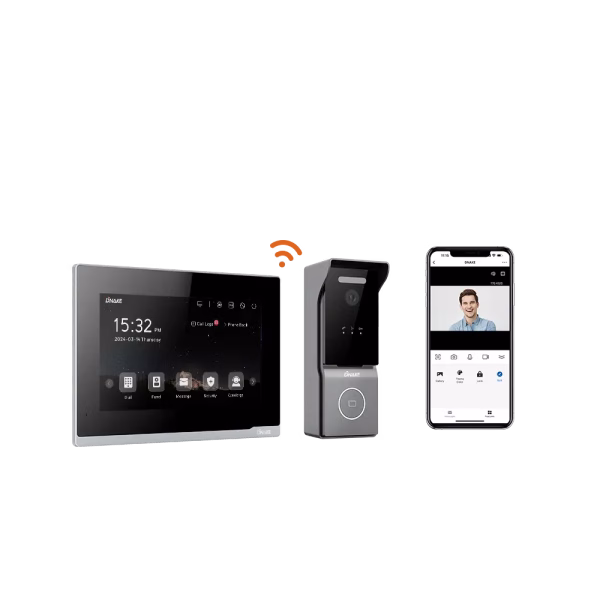

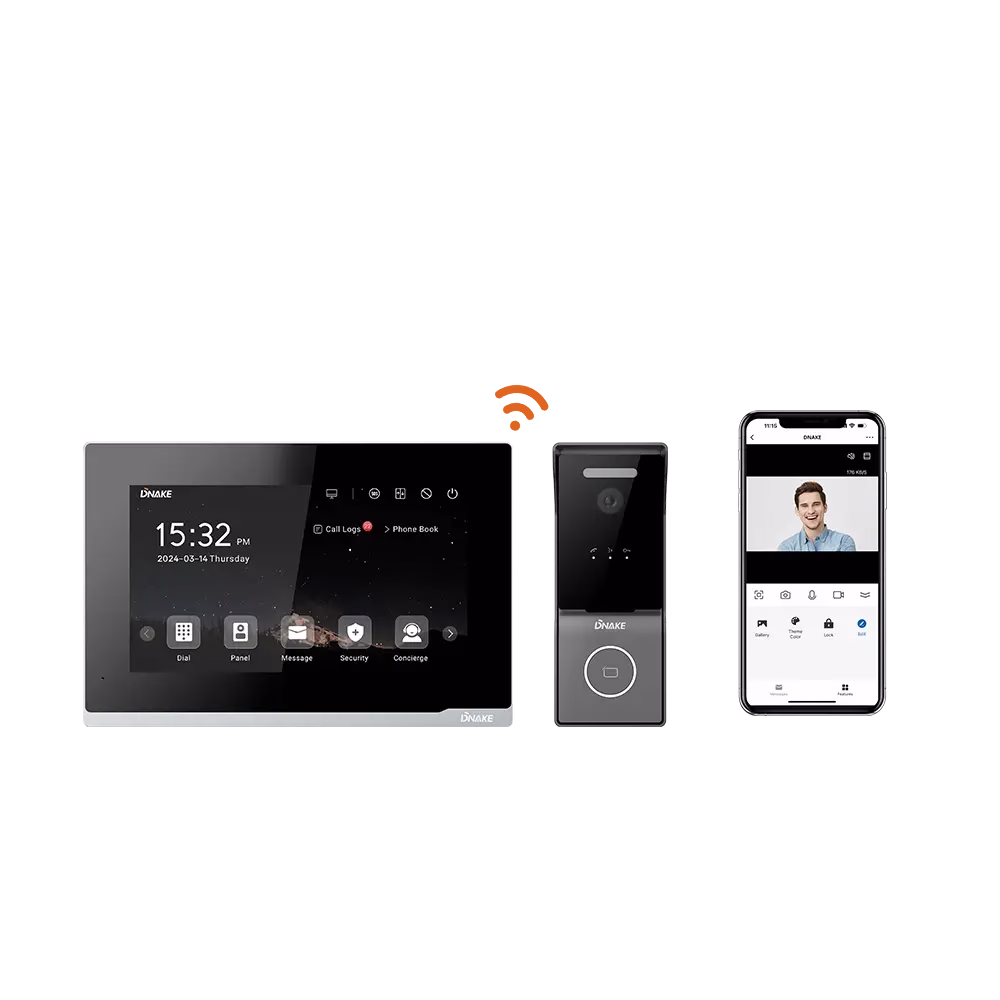

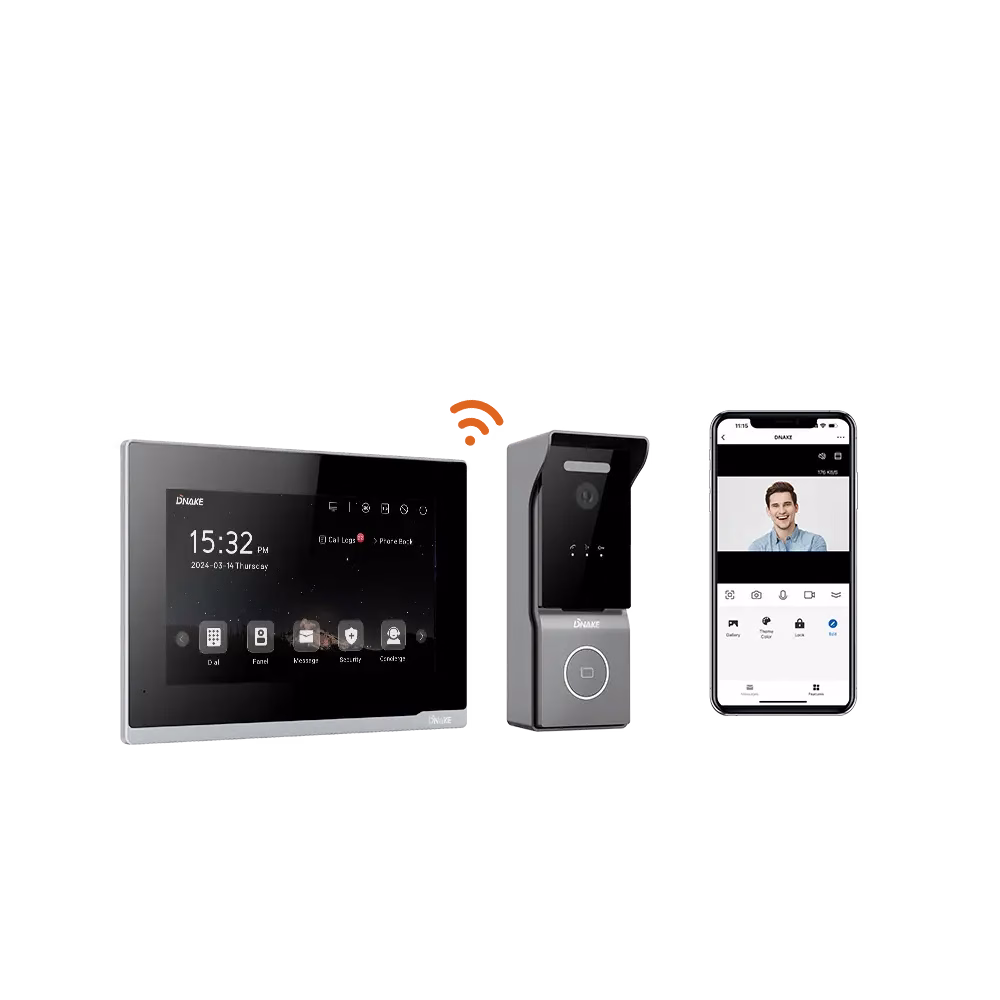

IPK05

IP Video Intercom Kit

• Plug & Play
• Wi-Fi connection for door station and indoor monitor
• One-touch calling, talking and unlocking
• 2MP HD digital WDR camera
• Remote unlocking
• Motion detection
• Tamper alarm
• TF card for video recording
• CCTV integration
• Standard PoE
