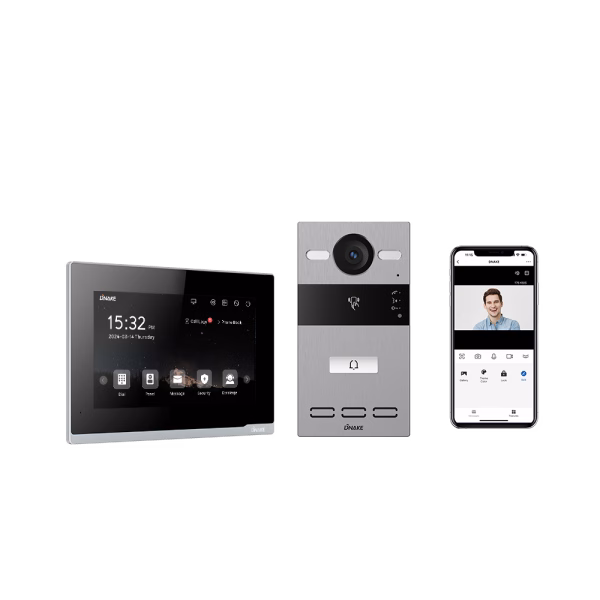

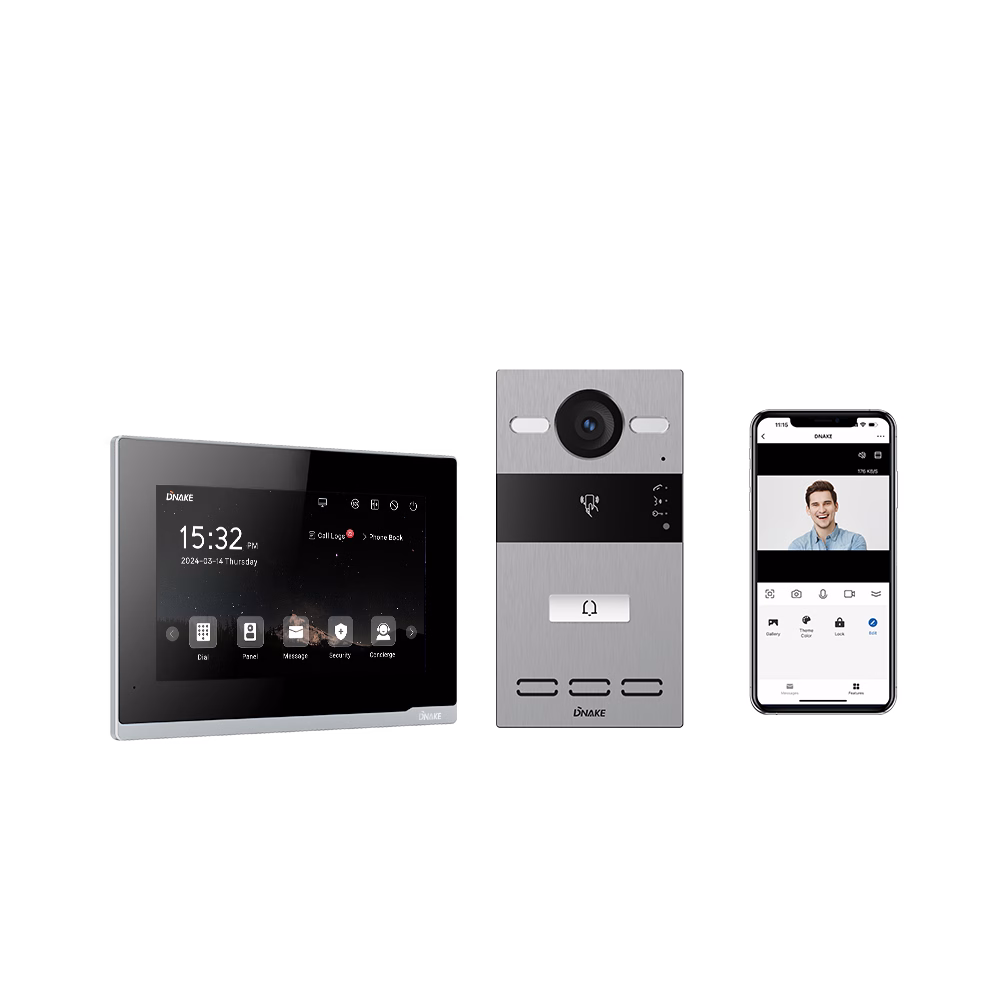

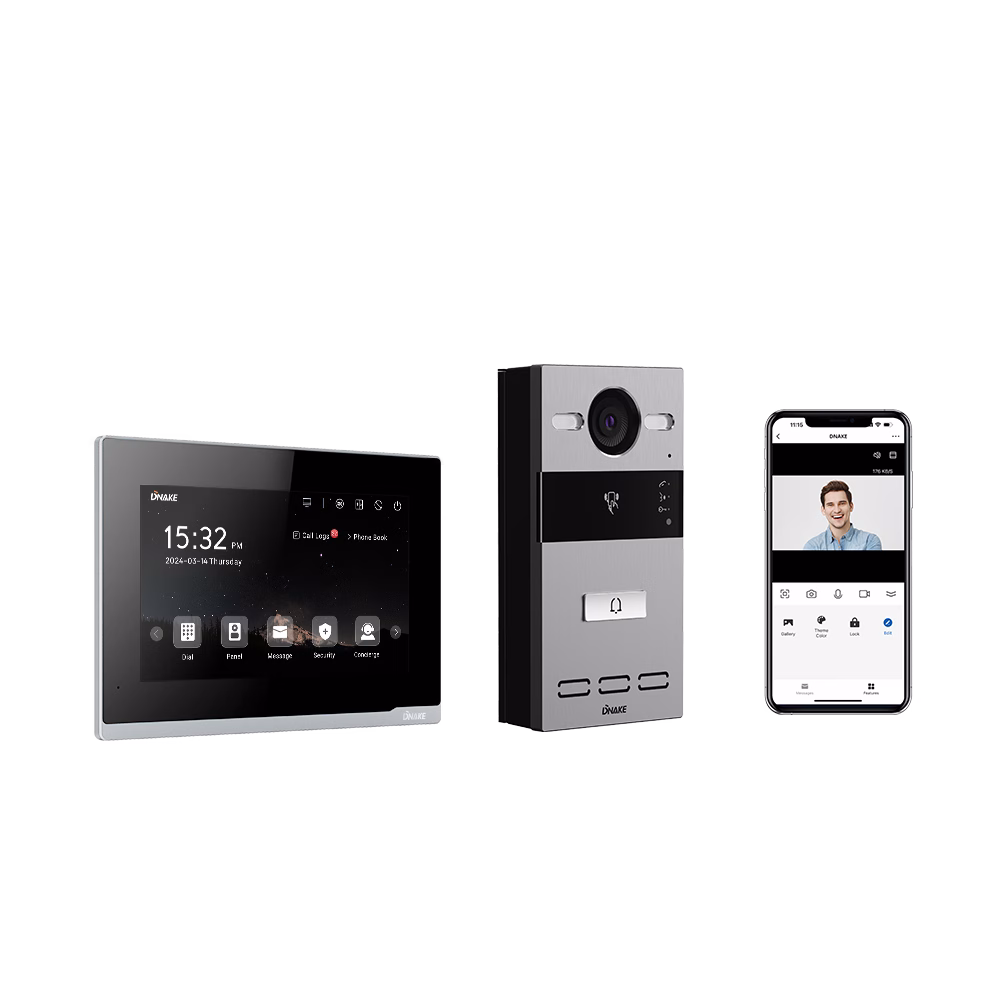

IPK03

Physical Property of Door Station S212
System	Linux
RAM	64MB
ROM	128MB
Front Panel	Aluminum
Power Supply	PoE (802.3af) or DC 12V/2A
Camera	2MP, CMOS
Video Resolution	1280 x 720
Viewing Angle	110°(H) / 60°(V) / 125°(D)
Door Entry	IC (13.56MHz) & ID (125kHz) Card, APP
IP Rating	IP65
Installation	Surface Mounting
Dimension	168 x 88 x 34 mm
Working Temperature	-40℃ – +55℃
Storage Temperature	-40℃ – +70℃
Working Humidity	10%-90% (non-condensing)
Physical Property of Indoor Monitor E216
System	Linux
Display	7-inch TFT LCD
Screen	Capacitive touch screen
Resolution	1024 x 600
RAM	64MB
ROM	128MB
Front Panel	Plastic
Power Supply	PoE (802.3af) or DC 12V/2A
Installation	Surface Mounting/Desktop
Dimension	195 x 130 x 14.5 mm
Working Temperature	-10℃ – +55℃
Storage Temperature	-40℃ – +70℃
Working Humidity	10%-90% (non-condensing)
Audio & Video
Audio Codec	G.711
Video Codec	H.264
Light Compensation	LED white light
Networking
Protocol	SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
Port of S212
Ethernet	1 x RJ45, 10/100 Mbps adaptive
RS485	1
Relay Out	2
Reset Button	1
Input	2
Port of E216
Ethernet	1 x RJ45, 10/100 Mbps adaptive
RS485	1
Doorbell Input	8
Alarm Input	8
