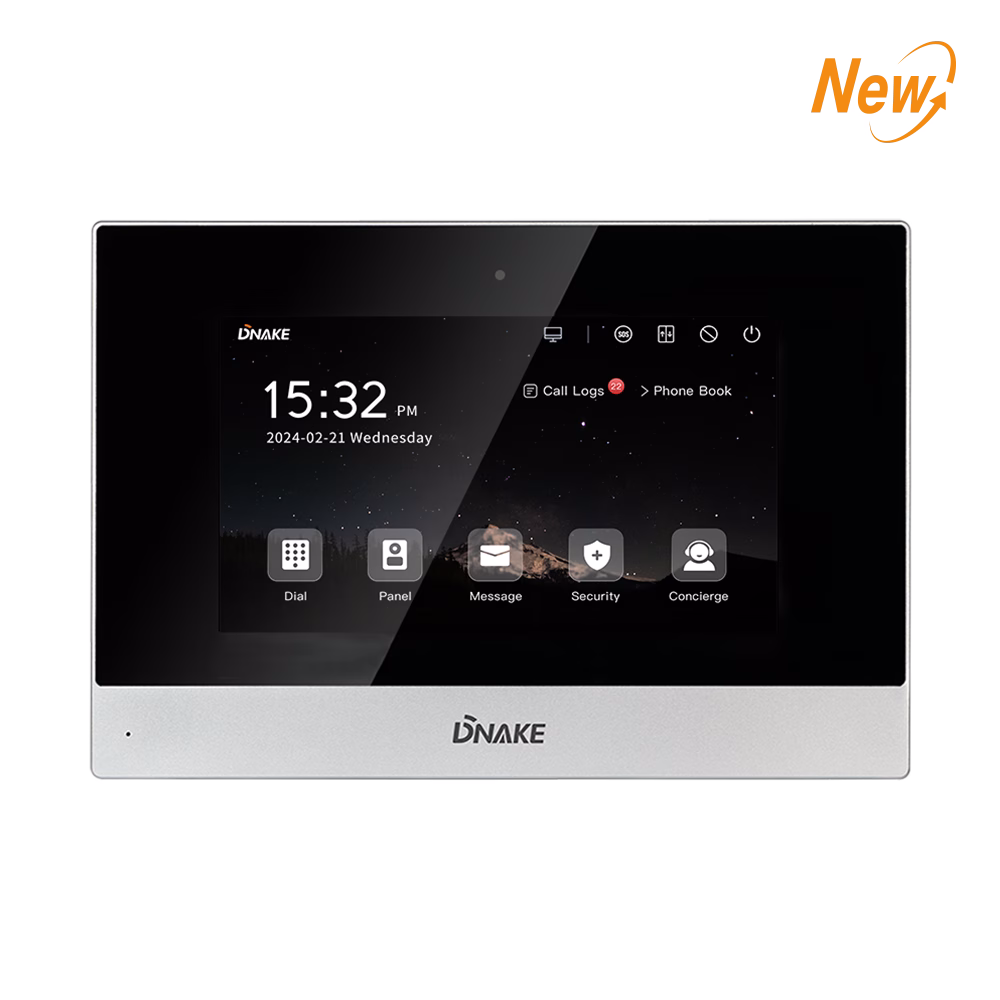

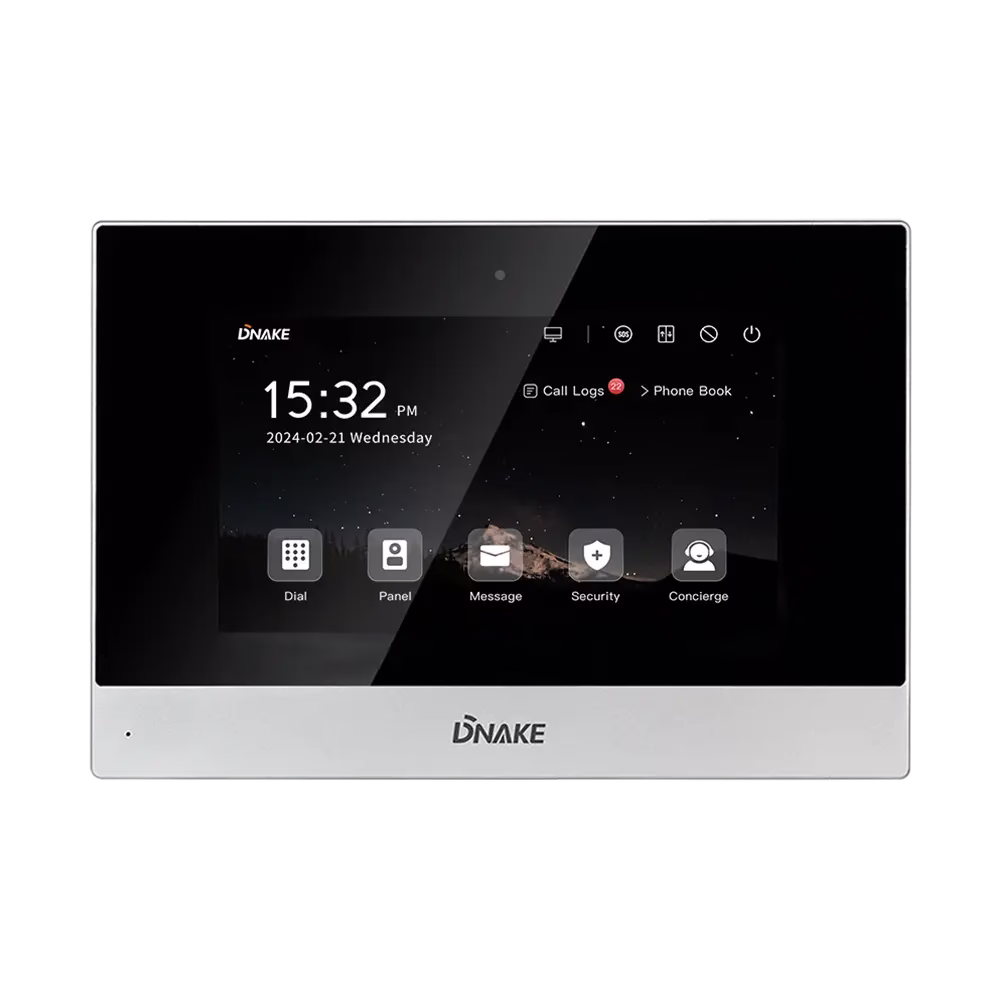

E215-2

Physical Property
System	Linux
RAM	128MB
ROM	128MB
Front Panel	Plastic
Power Supply	2-wire supply
Standby Power	5W
Rated Power	9W
Wi-Fi	Optional
Installation	Surface Mounting
Dimension	221.4 x 151.4 x 16.5mm
Working Temperature	-10℃ – +55℃
Storage Temperature	-10℃ – +60℃
Working Humidity	10%-90% (non-condensing)
Display
Display	7-inch TFT LCD
Screen	Capacitive touch screen
Resolution	1024 x 600
Audio & Video
Audio Codec	G.711
Video Codec	H.264
Networking
Protocol	SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
Port
Ethernet Port	2-wire port
RS485 Port	1
Power Output	1 (12V/100mA)
Doorbell Input	8 (use any alarm input port)
Alarm Input	8
Relay Output	1
TF Card Slot	1
